   SPECIALTY

FIBER

Arnold offers a wide range of machines for the fiber optics industry

An optical fiber is a flexible, transparent fiber made by drawing glass (silica) or plastic to a diameter slightly thicker than that of a human hair. Optical fibers are used most often as a means to transmit light between the two ends of the fiber and find wide usage in fiber-optic communications, where they permit transmission over longer distances and at higher bandwidths (data rates) than electrical cables. Fibers are used instead of metal wires because signals travel along them with less loss; in addition, fibers are immune to electromagnetic interference, a problem from which metal wires suffer excessively. Fibers are also used for illumination and imaging, and are often wrapped in bundles so they may be used to carry light into, or images out of confined spaces, as in the case of a fiberscope.

Arnold offers a wide range of machinery and equipment for the fiber optic industry, from preperation machines to draw towers

Fiber Optics Catalogue

The entire portfolio can be found clearly and in detail in our PDF catalogue.

18 pages


Pfeile rot weiss outline.png

   MCVD

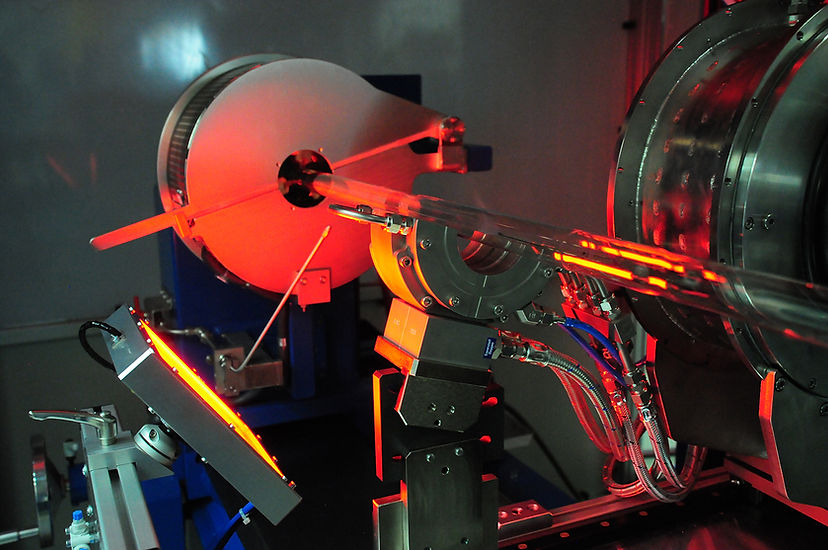

Arnold Customized MCVD Systems



The MCVD process is one of several processes for the production of gradient fibers. In this process, a glass tube is coated from the inside and the fiber core is only inserted at the end. A gas mixture that determines the refractive index is fed to the quartz glass. Layers with different refractive indices are created by repeatedly supplying and changing the gas mixture.

Arnold Customized MCVD Systems
Pfeile rot weiss outline.png

   DRAW TOWER


Ziehturm Frei.jpg

Single or double

sided execution

Pfeile rot weiss outline.png

   PREPERATION
LATHE


1060 frei rg2.png

Preperation lathes

Lathes

The precision machines for versatile and demanding use, for example for the production of glass electrodes, lamp bulbs made of quartz glass, glass-metal connections and for the general simplification or mechanization and automation of many work steps in glass and quartz glass processing.

press to zoom
press to zoom
press to zoom
press to zoom
Pfeile rot weiss outline.png

   CUTTING



72/350

Cutting Saw

Machine for cutting long, cylindrical tubes or rods made of glass, quartz glass, porcelain, ceramics and similar material with diameters 5mm to max. 130 mm and a length up to 2.500 mm. By one-time turning of the working piece also larger diameters of up to max. 200 mm can be cut.
The unit is designed for cutting discs of 400 mm diameter.

800_7431
800_7431
press to zoom
800_7436
800_7436
press to zoom
800_7432
800_7432
press to zoom
800_7438
800_7438
press to zoom
Pfeile rot weiss outline.png

   BURNER



SSQ 141/18/6.3



Machine burners,  surface mix

with radially adjusted burner heads made of quartz glass. For hydrogen and oxygen, alternatively with 3,4,5 or 6 burner heads. With 5 burner heads and more with medial supply on both sides.


141/220.010



Counterfire unit for burner heads made of quartz glass, surface mix



Prepared for the operation with hydrogen and oxygen burner heads with 3 sheet dies.

141/41 WS WK



Radial burner

For the production of „Preform“, operation with hydrogen and oxygen, water-cooled.

■  Burner housing is made of highly heat-resistant stainless steel.
■  The complete burner housing is water-cooled.

141/0120-0140



Radial burner with multiple hole jets, surface mix

Perfect burner for fiberglass processing, which are characterized by the following advantages:

■  High capacity at low Consumption
■  Concentrated Flame
■  Usage of high temperature Stainless-steel e.g. Inconel
■  Safe due to surface mix Gas system
■  Flexible System with different burner head sizes
